SPEEDWORKS AUTOMOTIVE

SW02

SW02

$250.00
$250.00
Sale Sold out
$1,000.00 for 4 wheels
5.0 from 150+ Google Reviews Read here ↗︎
Tax included.

or 4 interest-free payments with Afterpay

Colour
Stud Pattern
Size

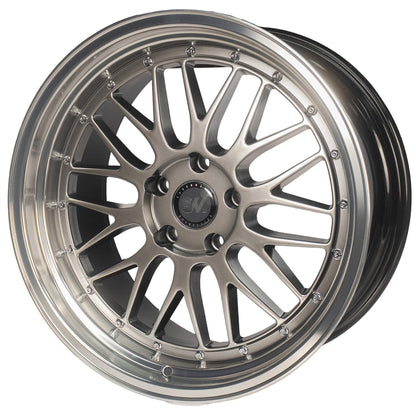

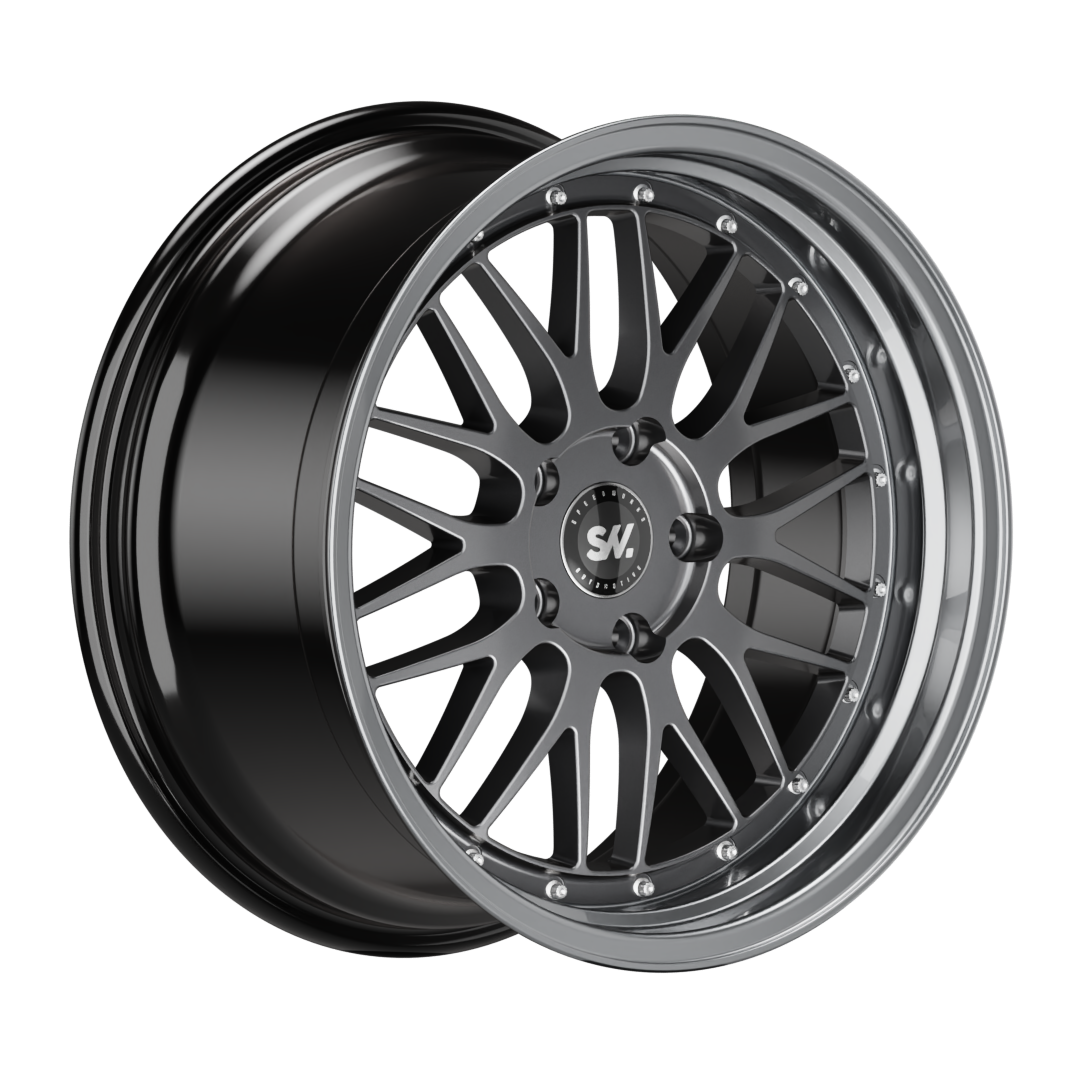

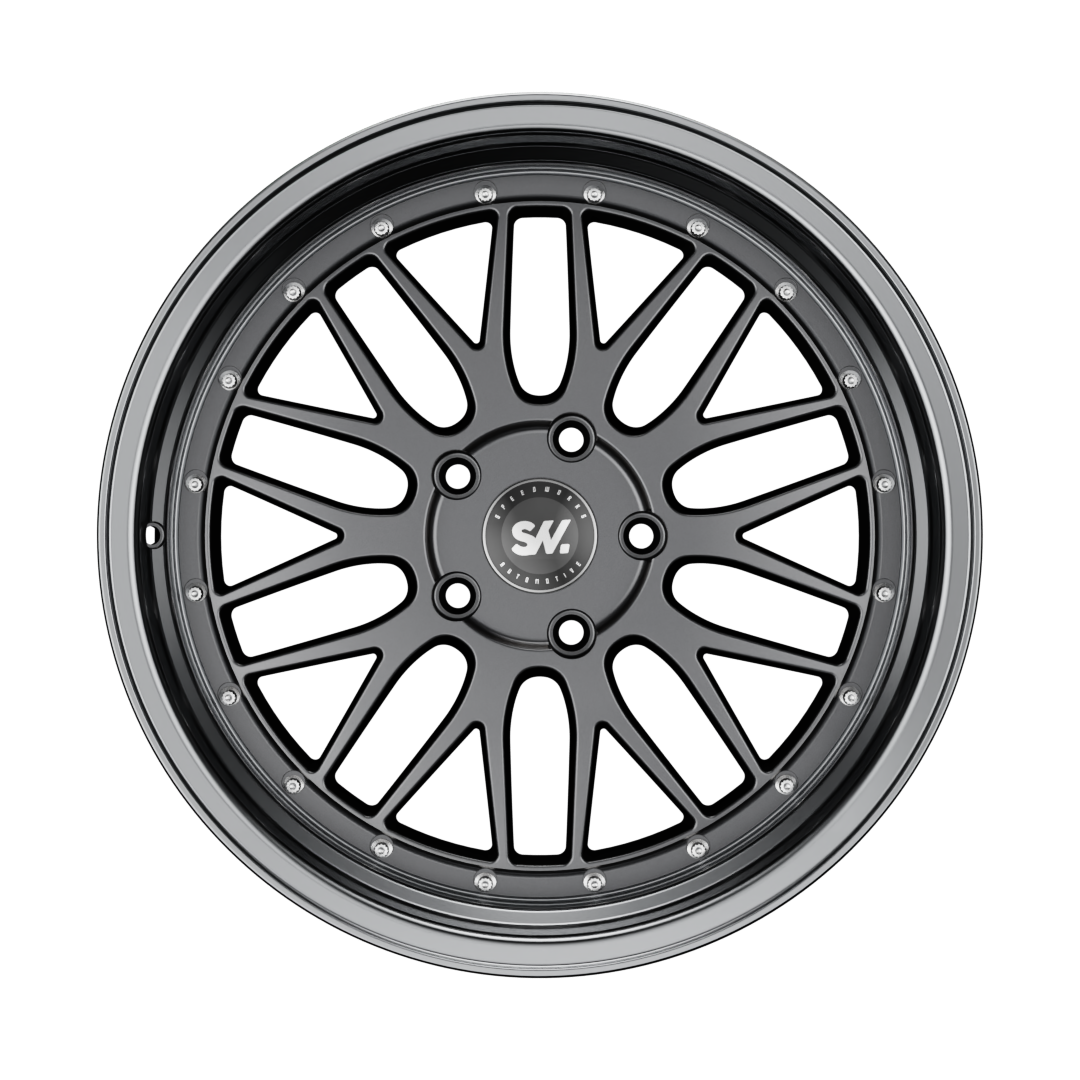

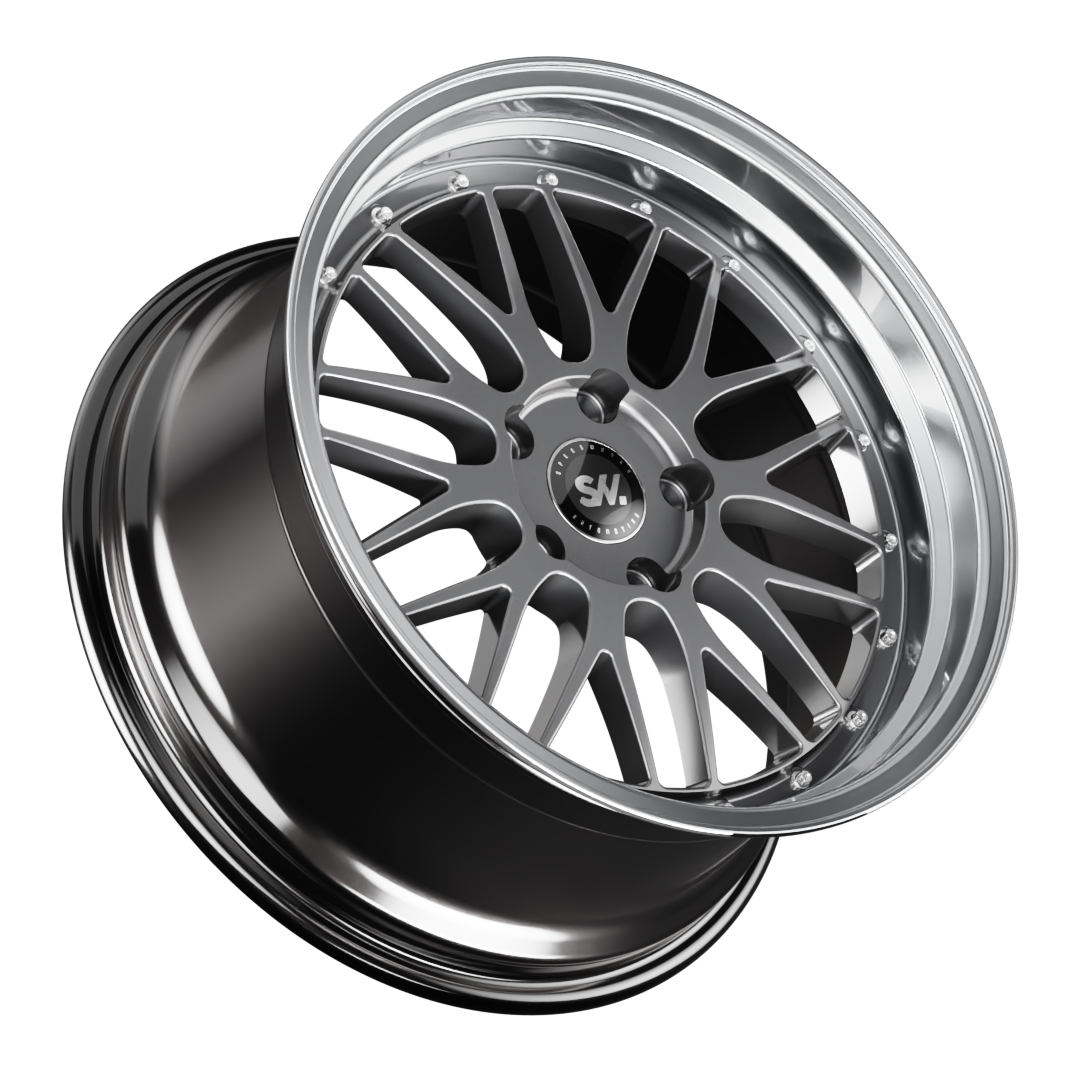

The SW02 is a timeless, deep-lipped alloy wheel finished in Hyper Black with a Machine Lip. Available in 18" and 19" with a wide stud pattern spread, it's one of SpeedWorks' most popular fitments across Japanese and European tuner platforms.

Spec Detail
Diameter 18" / 19"
Width 8", 8.5", 9.5"
Stud pattern (PCD) 5x114.3, 5x112, 5x120, 5x100
Offset +25 to +35
Centre bore 73.1mm
Construction Flow-formed alloy
Finish Hyper Black & Machine Lip
Certification JWL, VIA, AS1638
Load rating 690kg per wheel (2,760kg per set of 4)
Weight per wheel TBC

Why flow-formed?

This wheel's barrel is flow-formed rather than simply cast. After the face is cast, the barrel is heated and spun at high speed while rollers apply pressure, stretching and compressing the metal. This aligns the alloy's grain structure, typically producing a wheel that's lighter and stronger than an equivalent cast-only wheel, without the cost premium of a fully forged wheel. Exact weight and strength gains vary by design.

Cast Alloy vs Flow-Formed Alloy Weight Cast (heavier) Flow-formed (lighter) Strength Cast Flow-formed (denser grain structure) Cast: alloy poured into a mould and left to cool. Flow-formed: cast barrel is heated, spun and pressure-rolled, aligning the metal's grain for added strength at a lower weight.

Popular fitments: 5x114.3 (most Nissan, Toyota, Honda, Mazda, Mitsubishi, Hyundai, Kia), 5x112 (VW, Audi, Mercedes), 5x120 (BMW, Holden), 5x100 (Subaru).

Always confirm your car's stud pattern, offset and centre bore before ordering. If you're not 100% sure this wheel fits your vehicle, chat to us via the live chat box and we'll confirm before you buy.

View full details

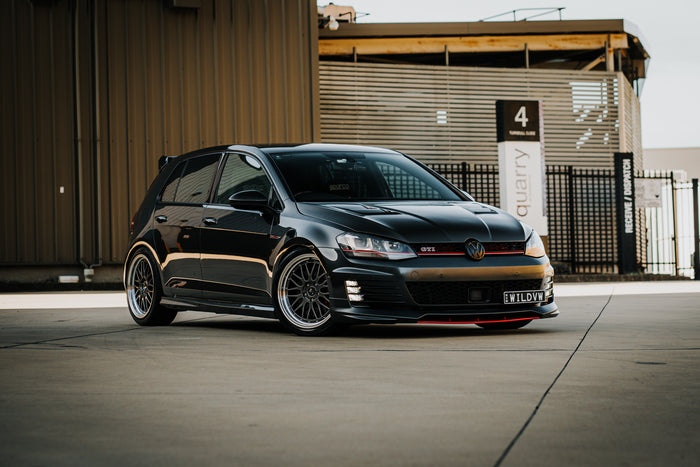

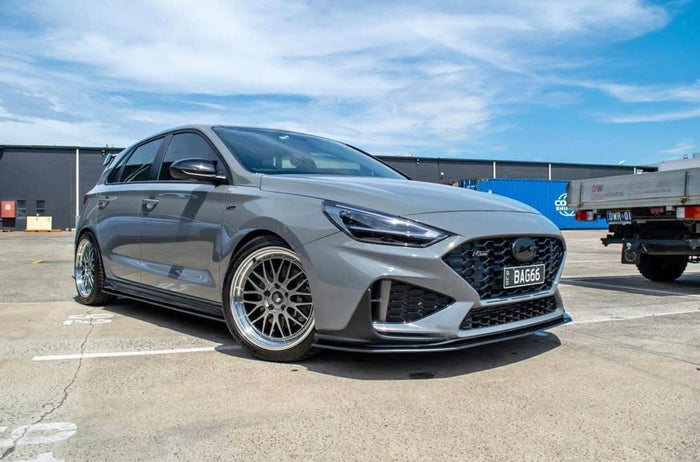

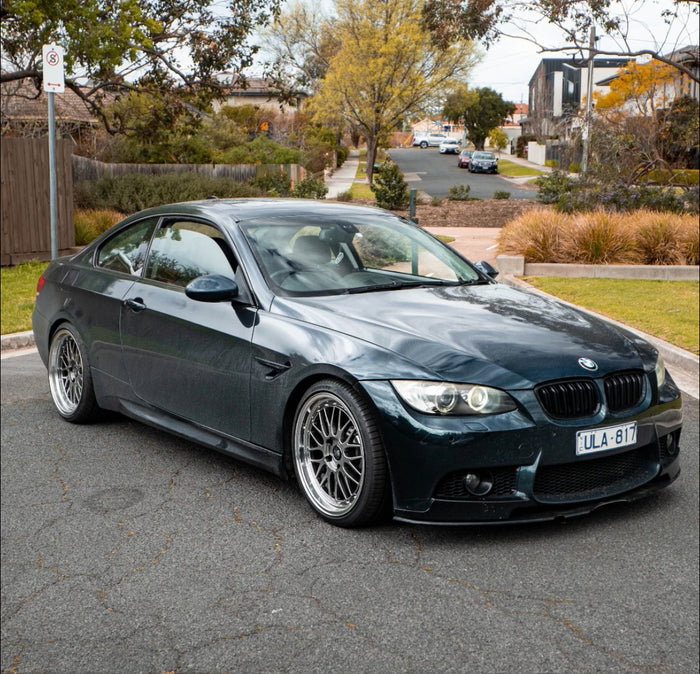

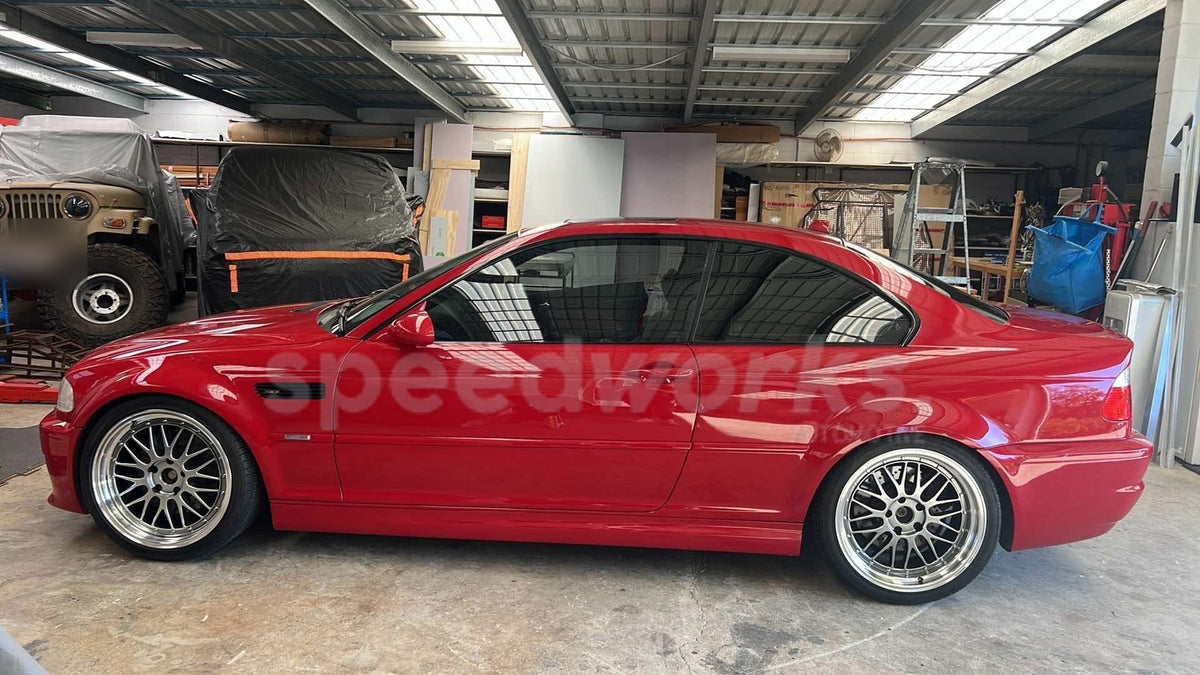

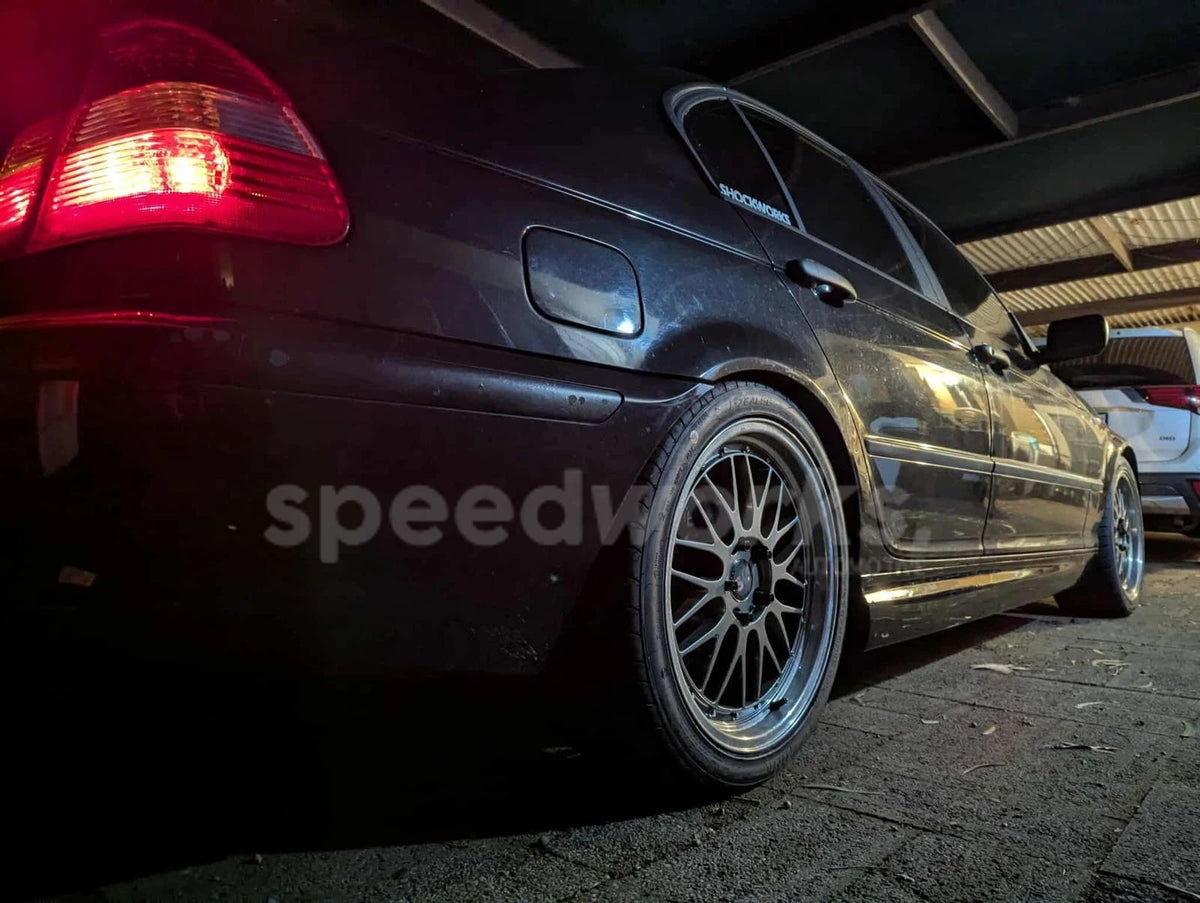

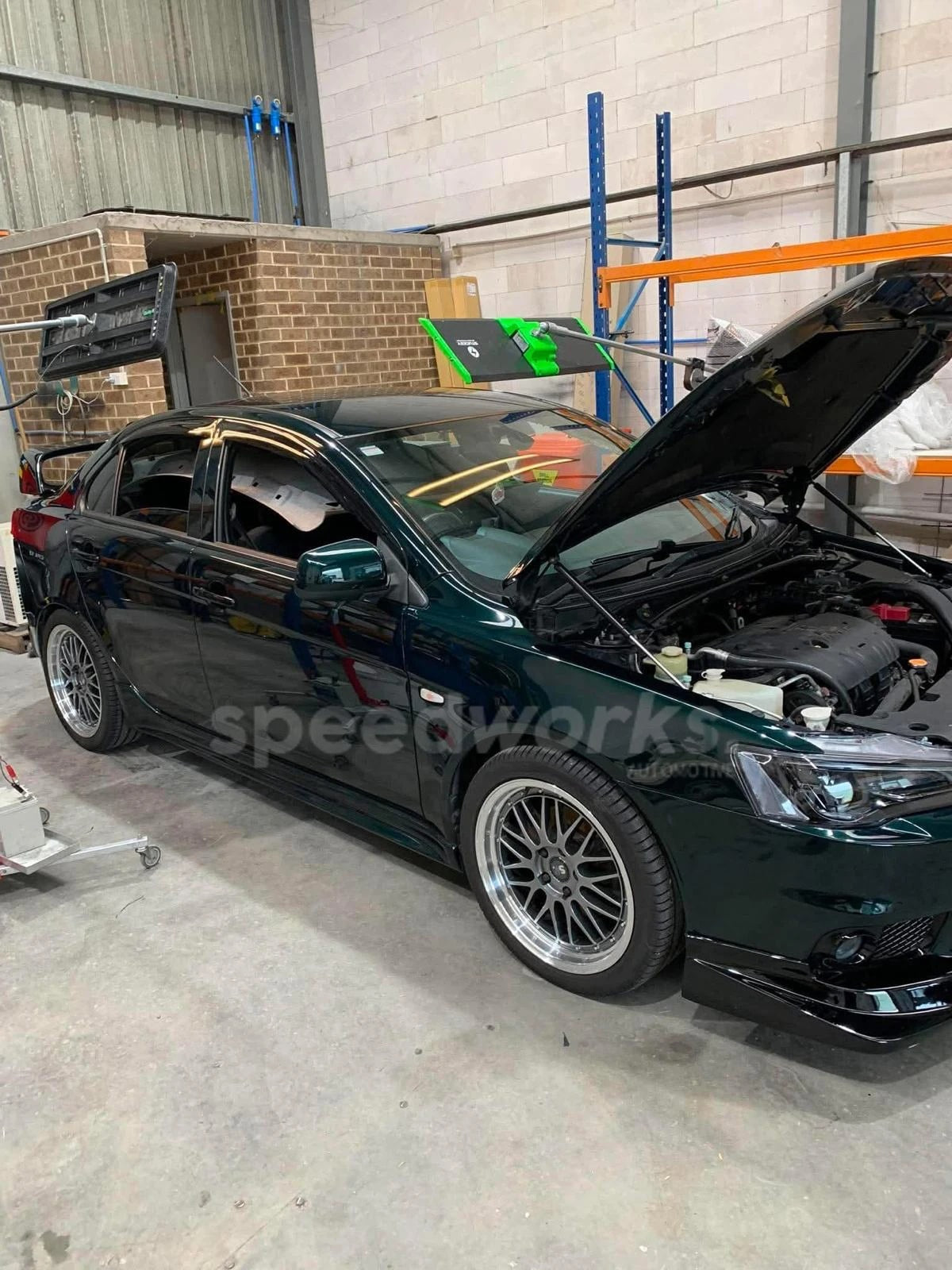

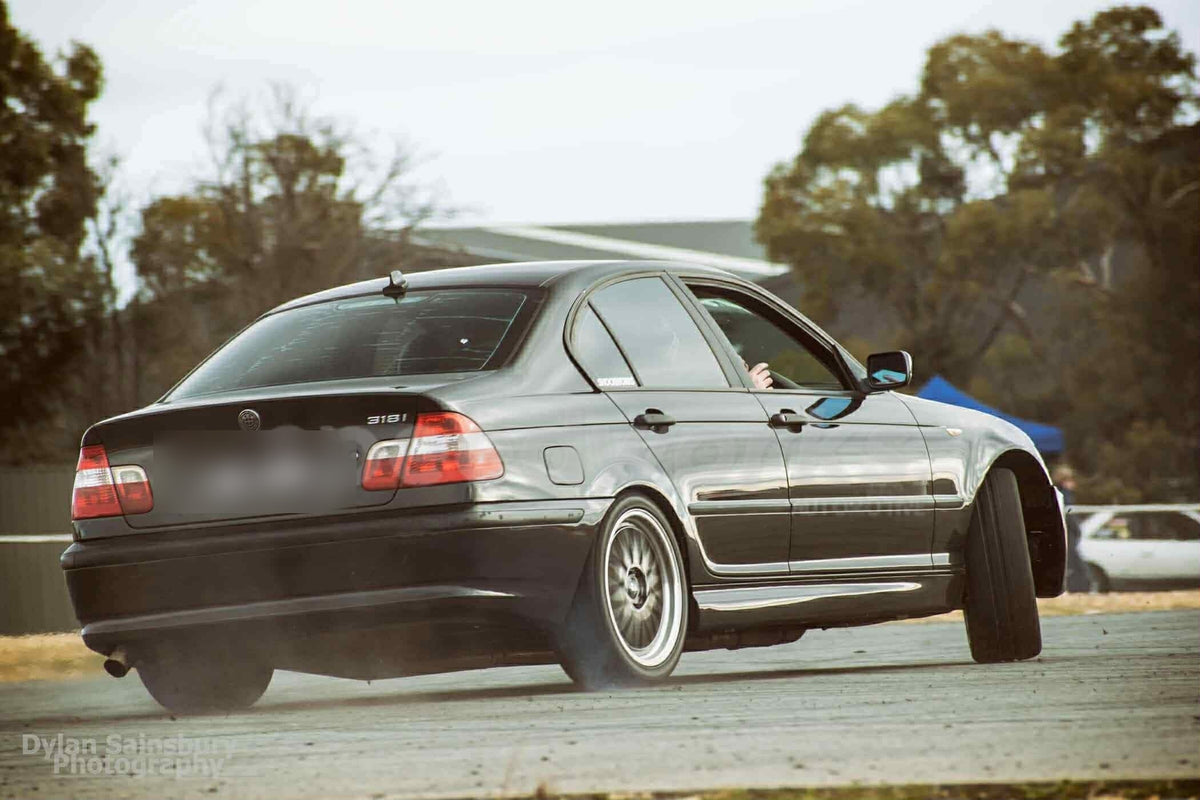

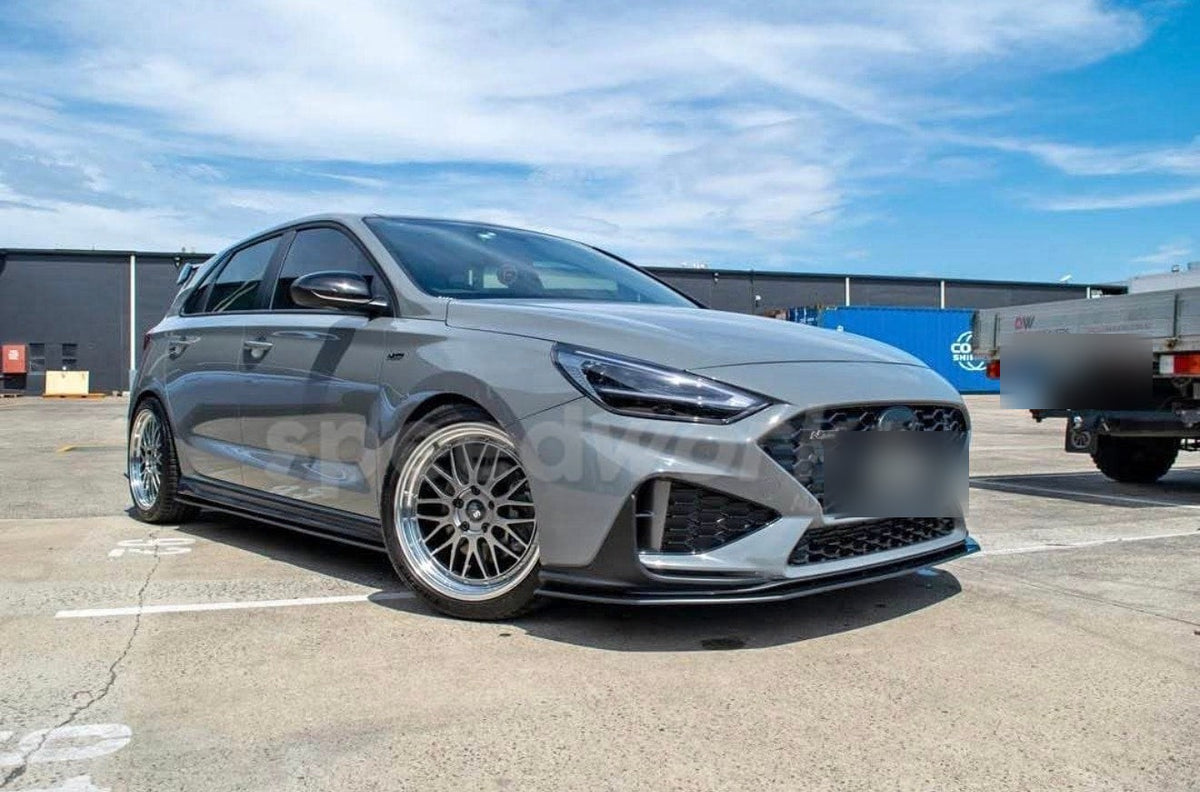

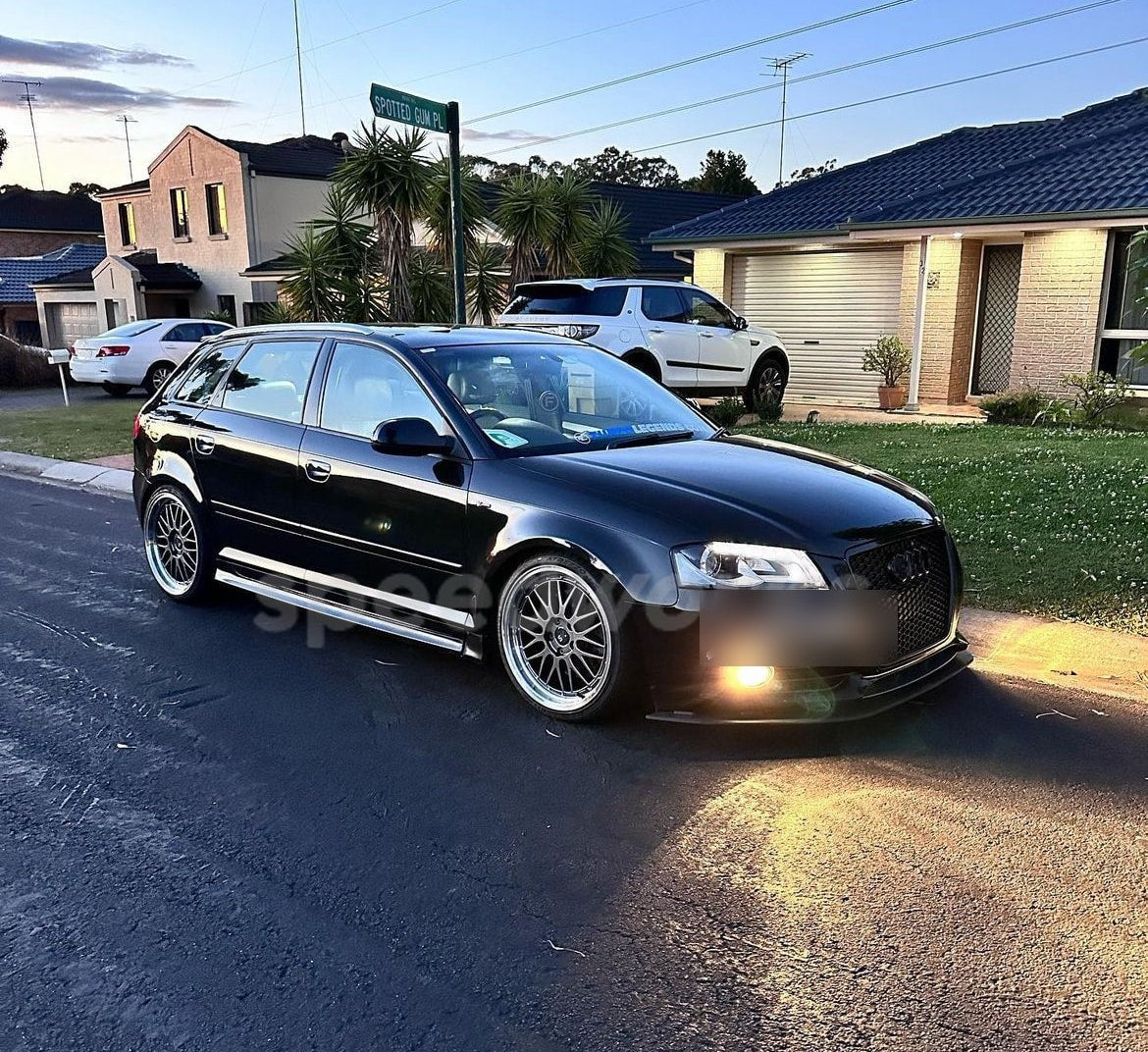

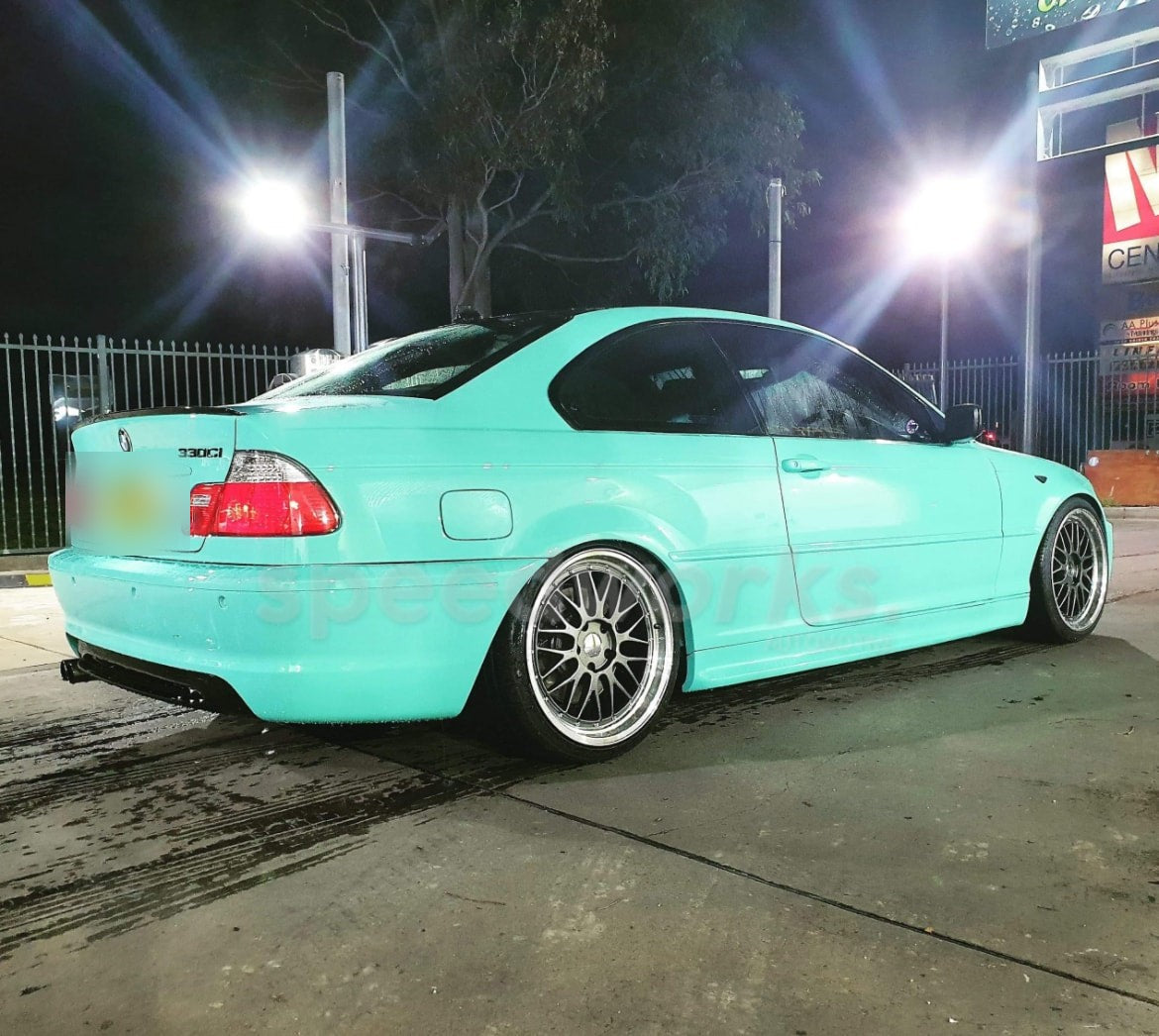

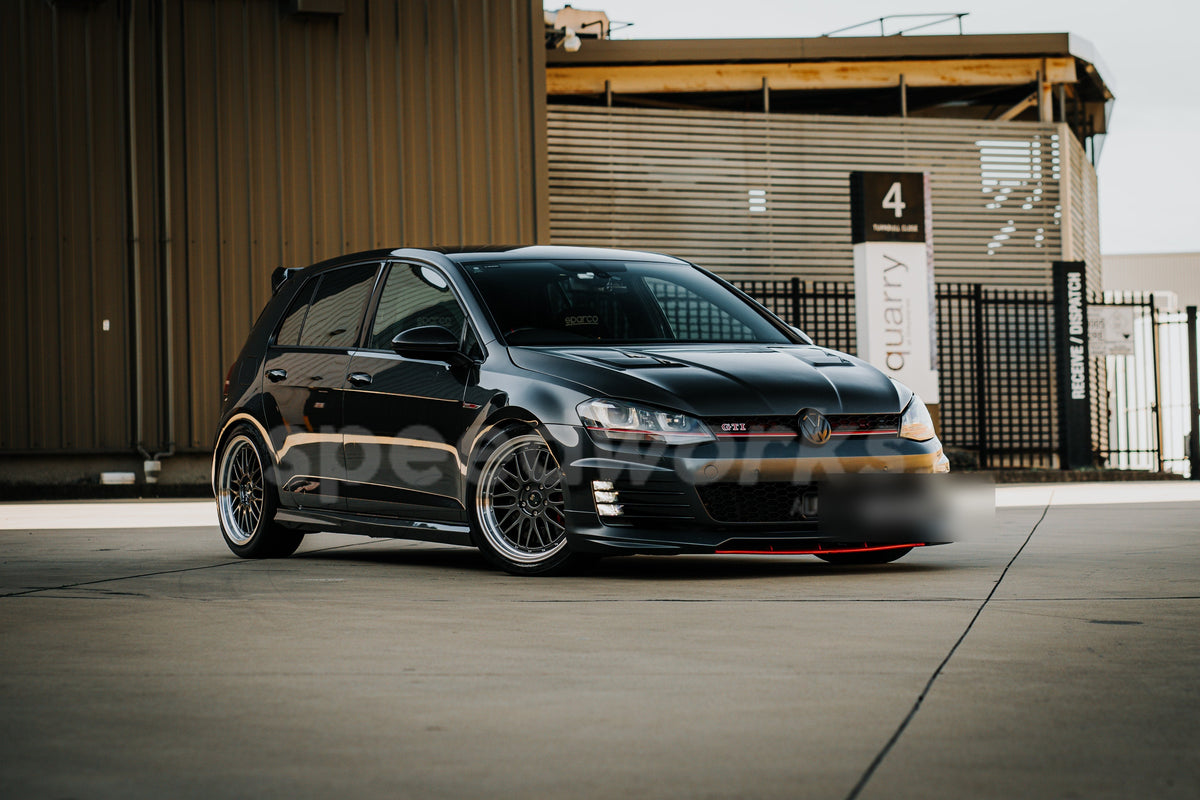

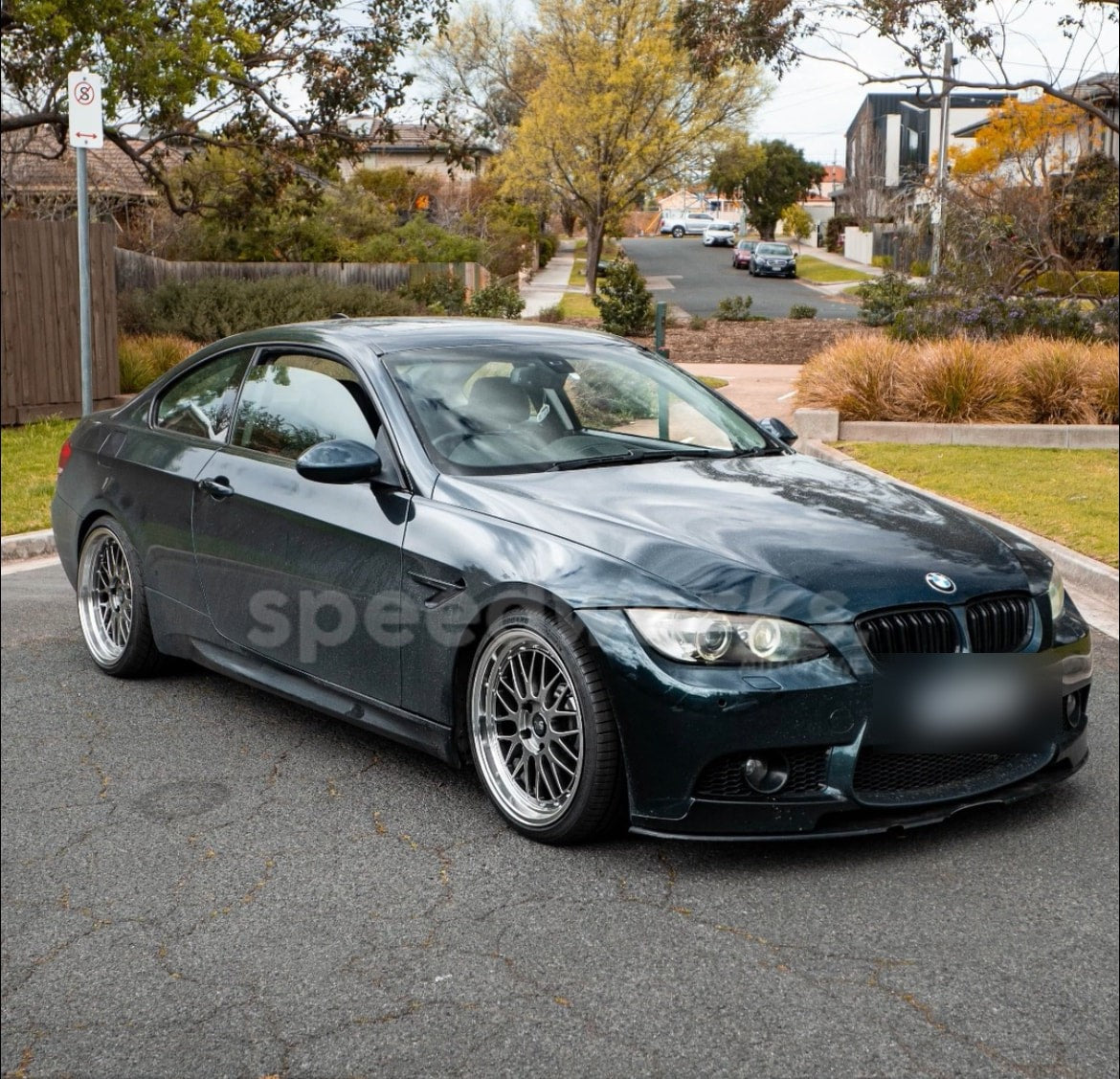

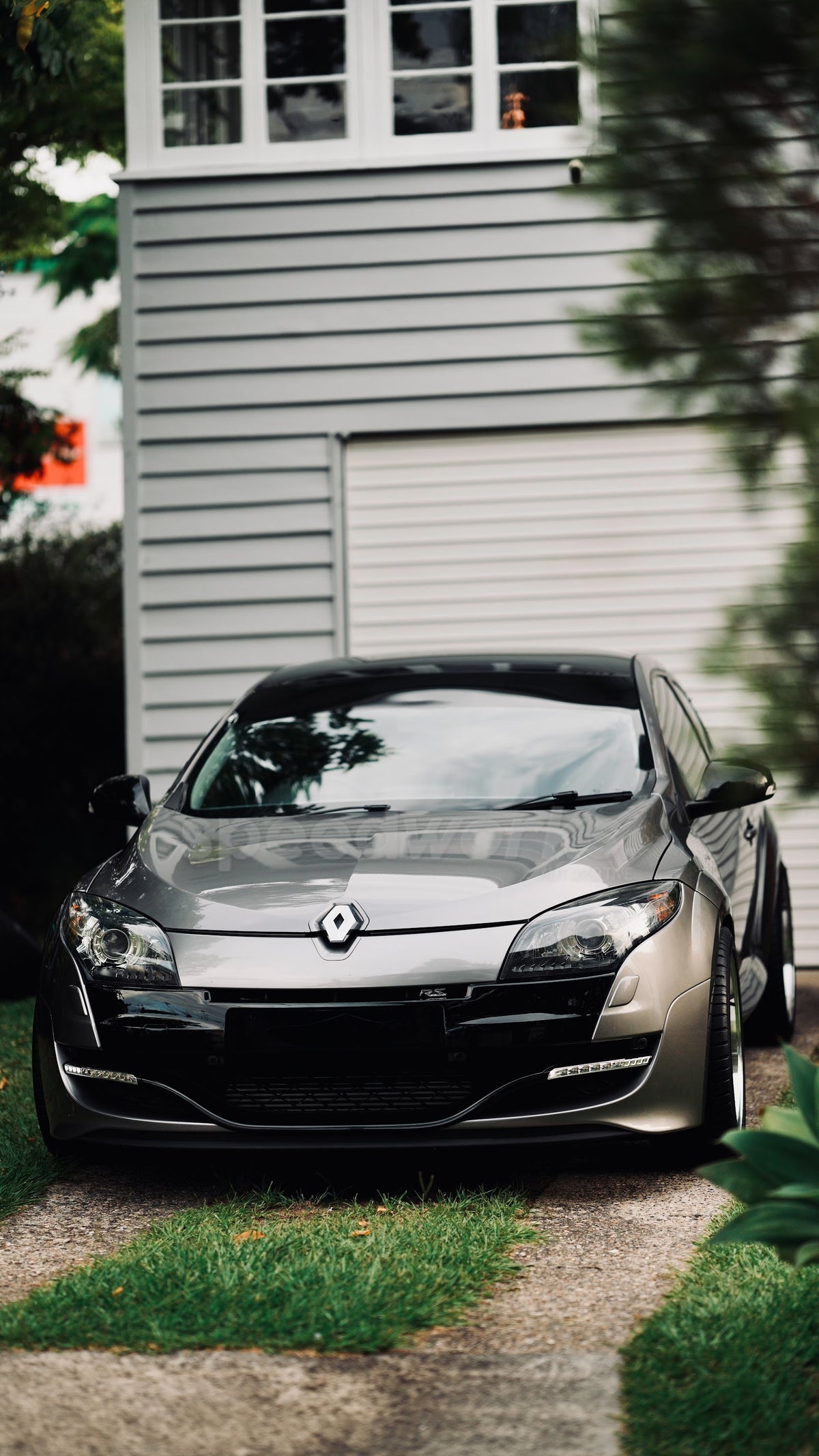

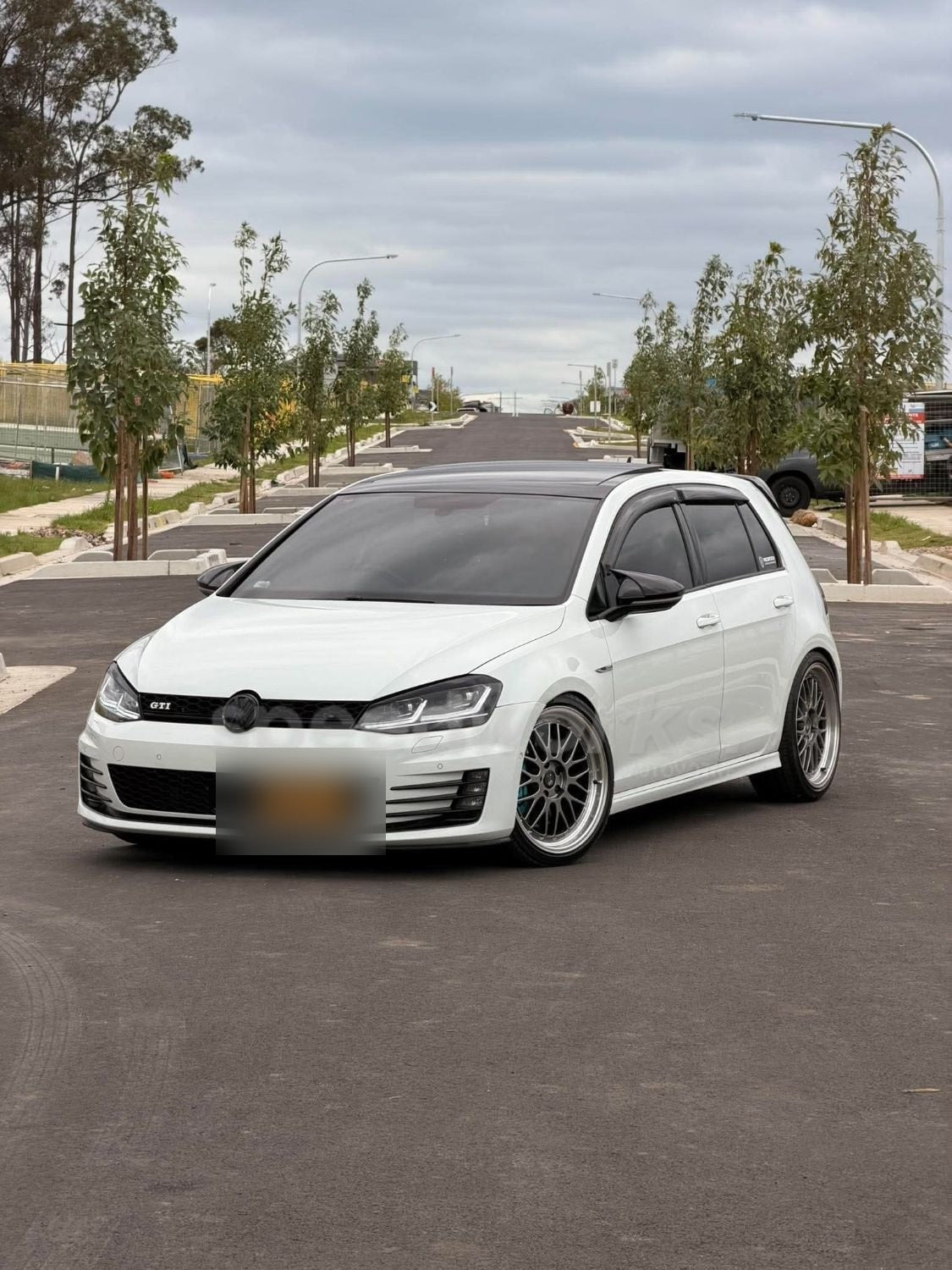

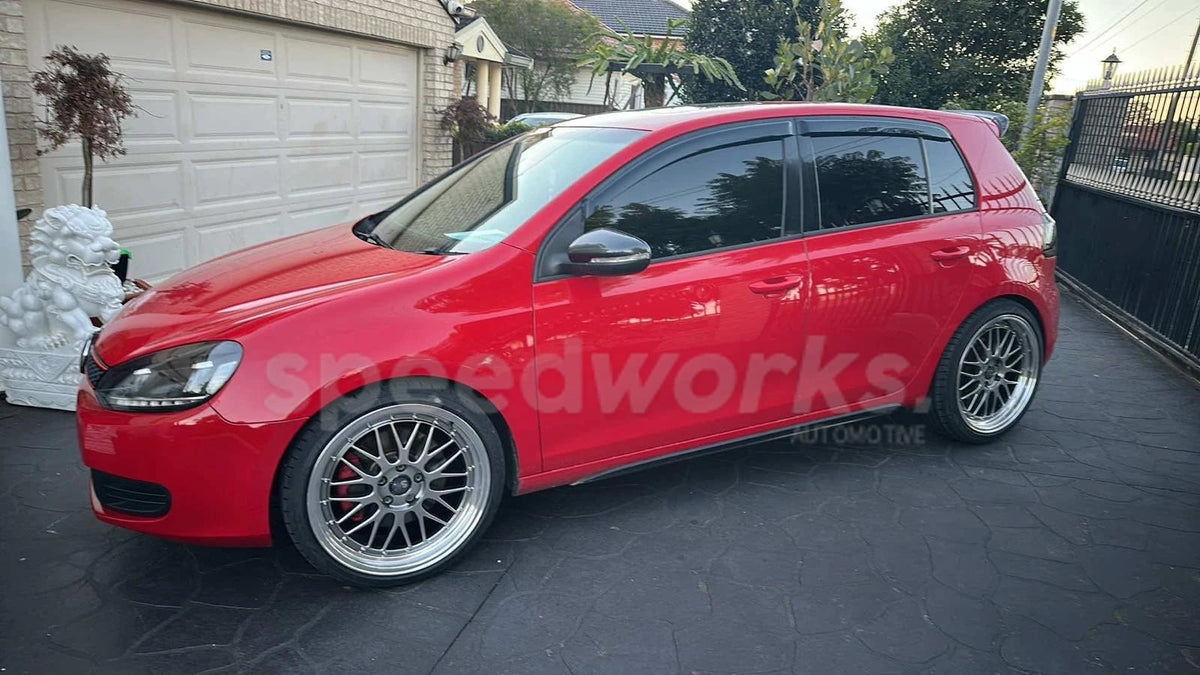

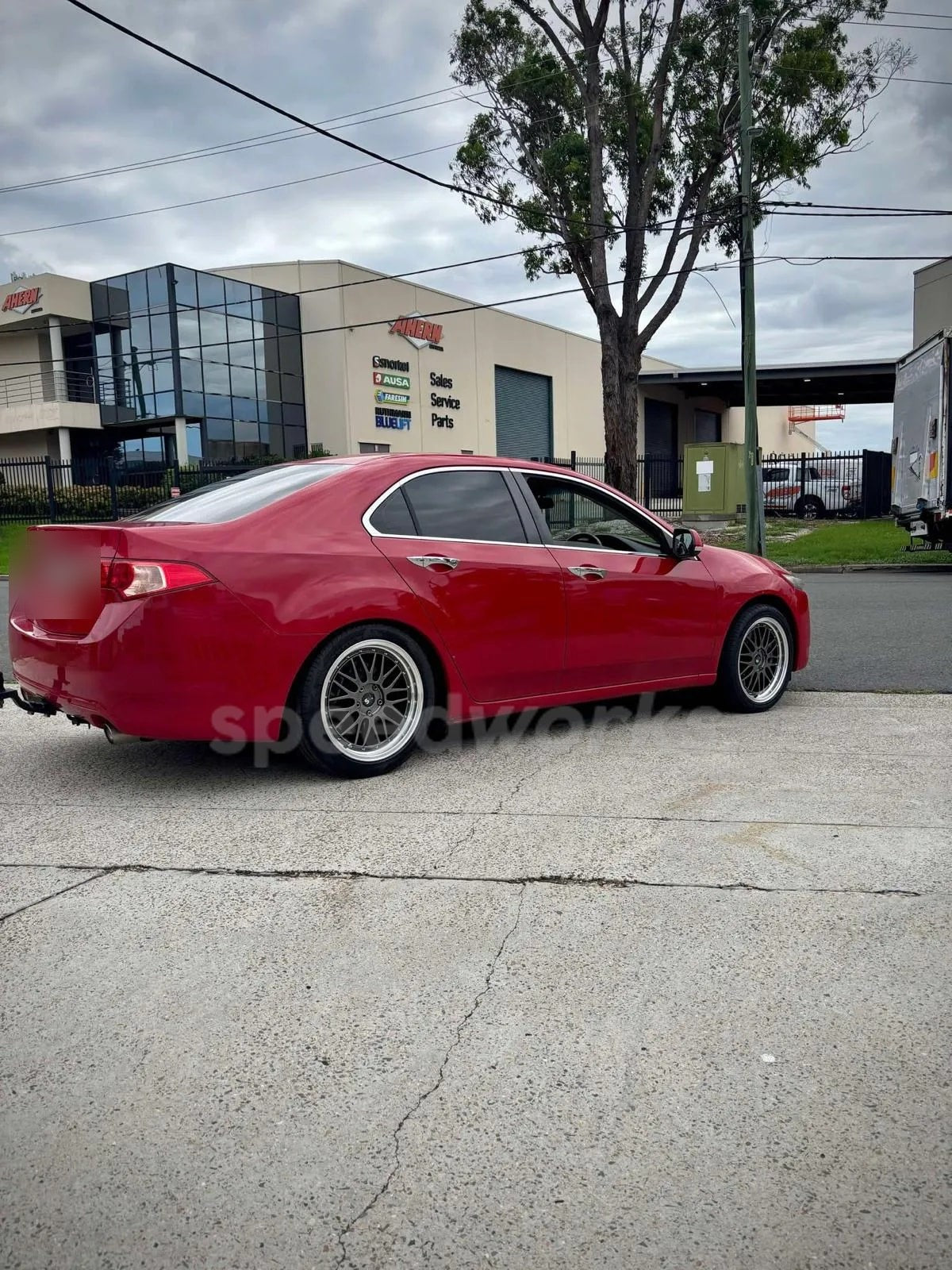

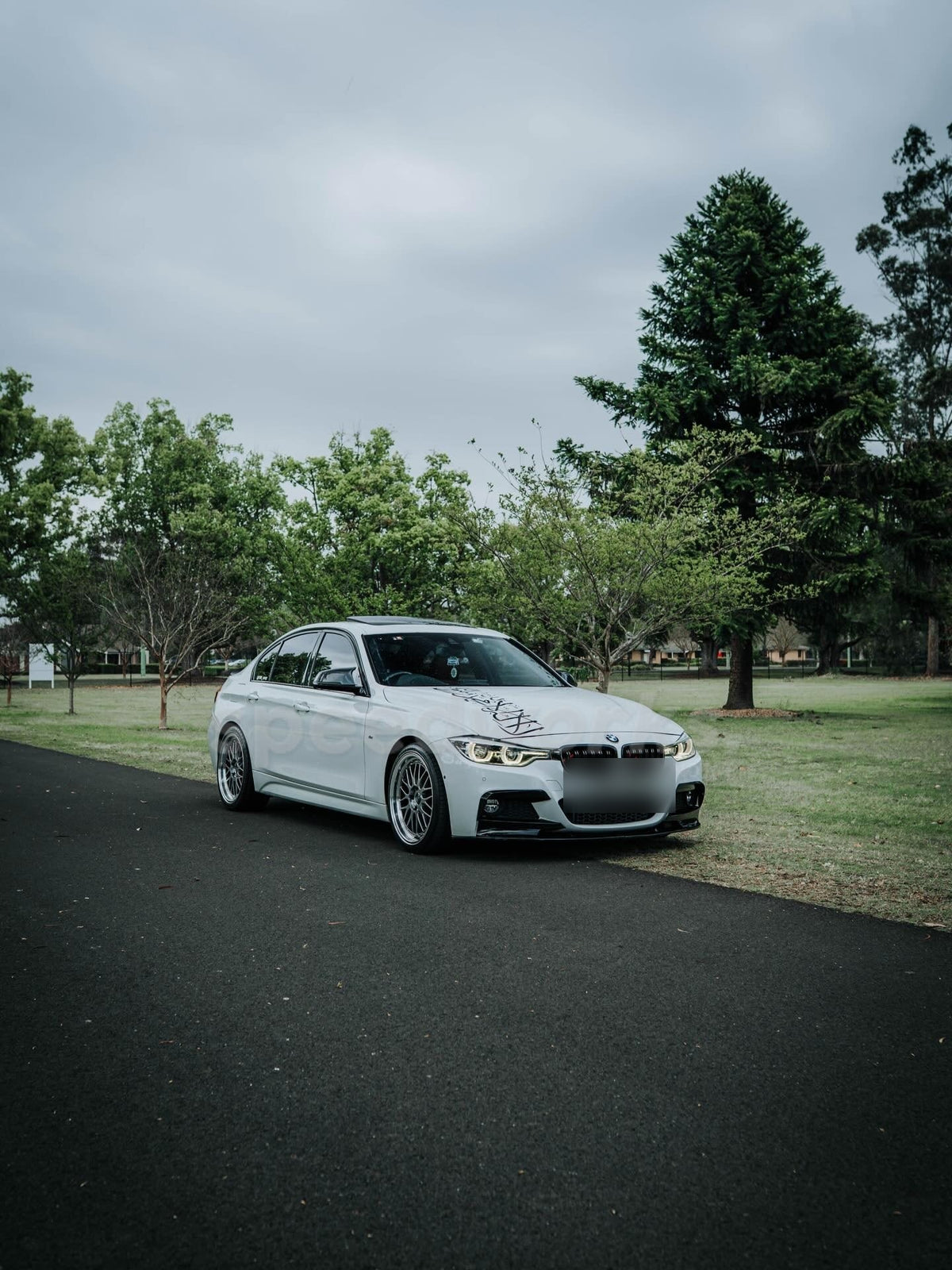

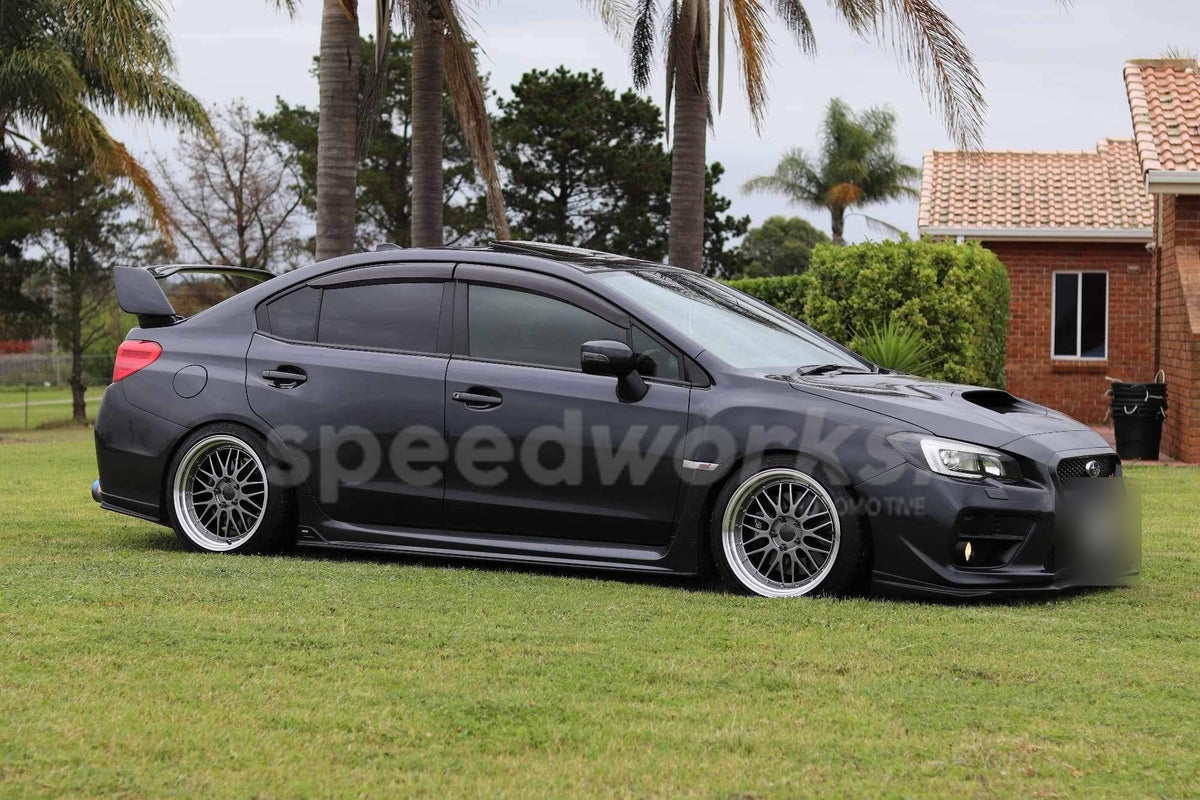

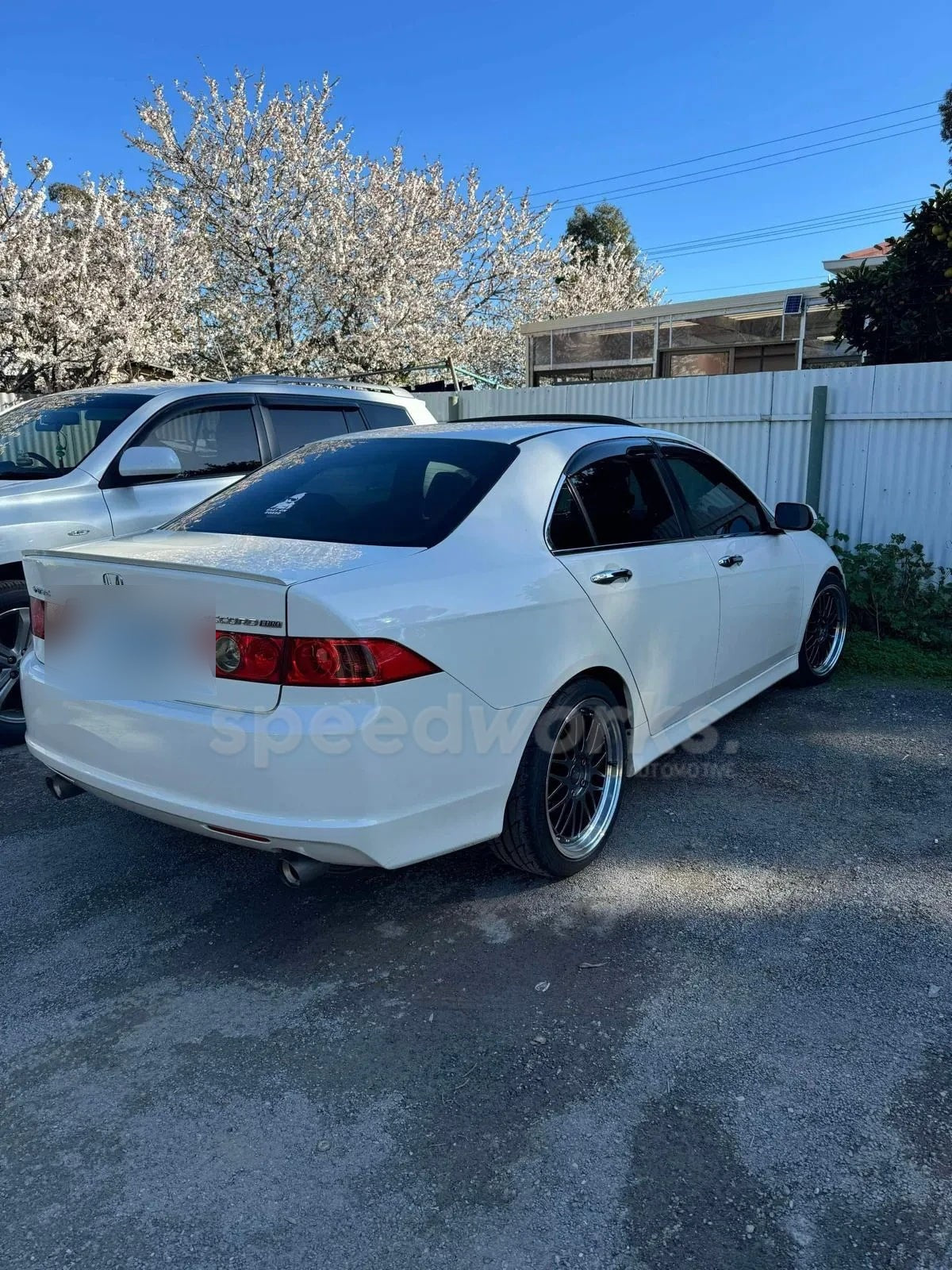

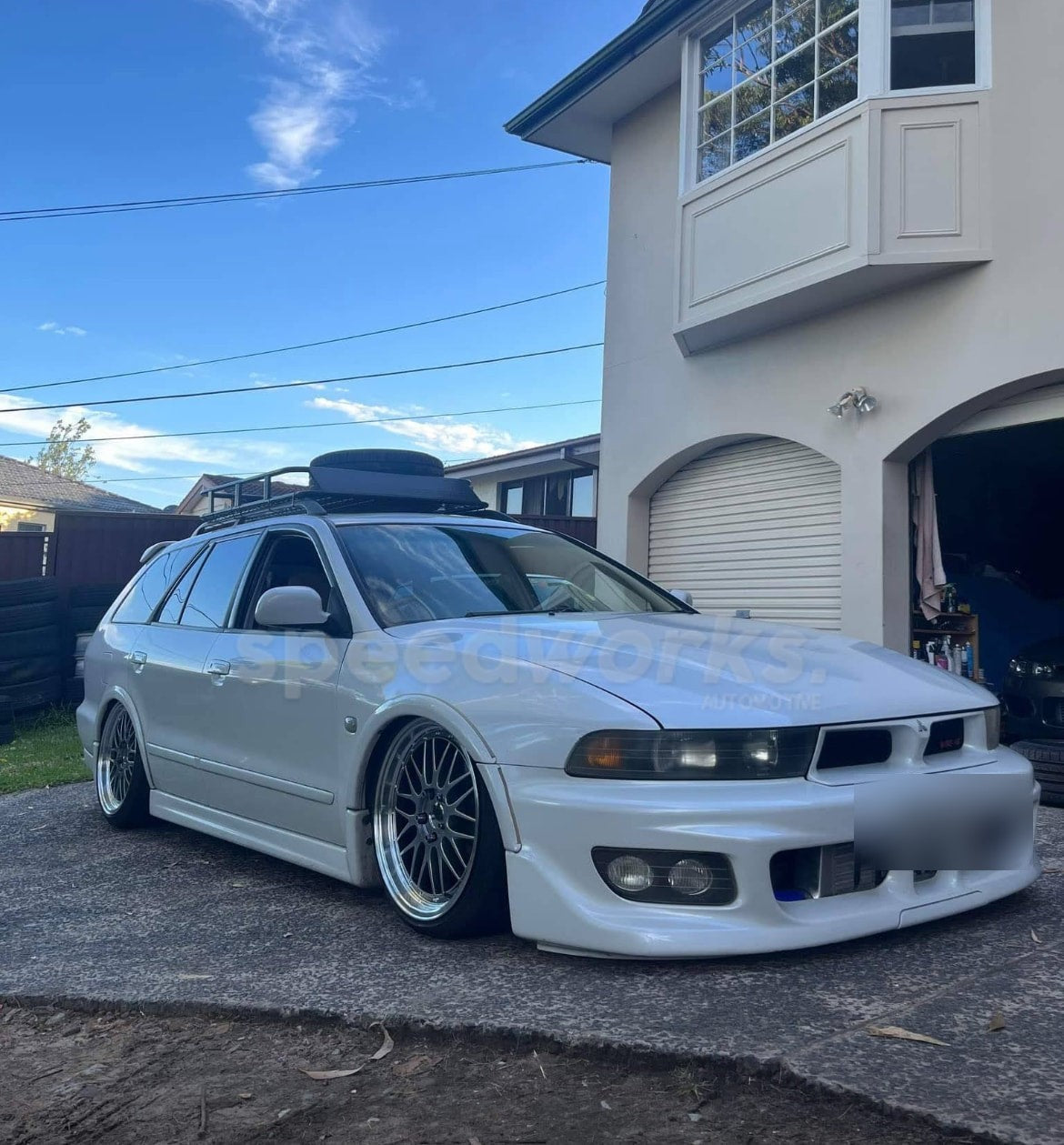

ON CUSTOMER CARS

GOOD TO KNOW

Will these fit my car?

Every wheel lists its stud pattern, size, and offset above. Match these to your vehicle and you're set. Not sure? Message us on live chat with your car's make, model, and year and we'll confirm fitment before you buy.

Are these wheels road legal?

Yes. Every SpeedWorks wheel is independently tested and certified to JWL, VIA, and AS1638 which are the safety standards required of road wheels internationally and in Australia. That's your assurance these are built for daily driving, not just for looks. Just make sure your chosen size and offset suit your vehicle and your state's fitment rules.

Delivery and pickup

We deliver Australia-wide with tracked and insured shipping, so your wheels are covered from our warehouse to your door. Prefer to collect? Free pickup is available from our warehouse in Penrith, Sydney, usually ready in 2 days. Just select pickup at checkout.

Warranty

All SpeedWorks products are covered by a 12-month warranty against defects in materials and finish. If something's not right, contact us and we'll sort it out. Full terms are on our Warranty page.
