SWF04 to suit Kia Stinger CK (2017–2023)
- Fully forged
- Fitment worked out
- Made to order
or 4 interest-free payments of with
We read every note before production and confirm anything with you first.
The details
SWF04 – Forged for the Kia Stinger

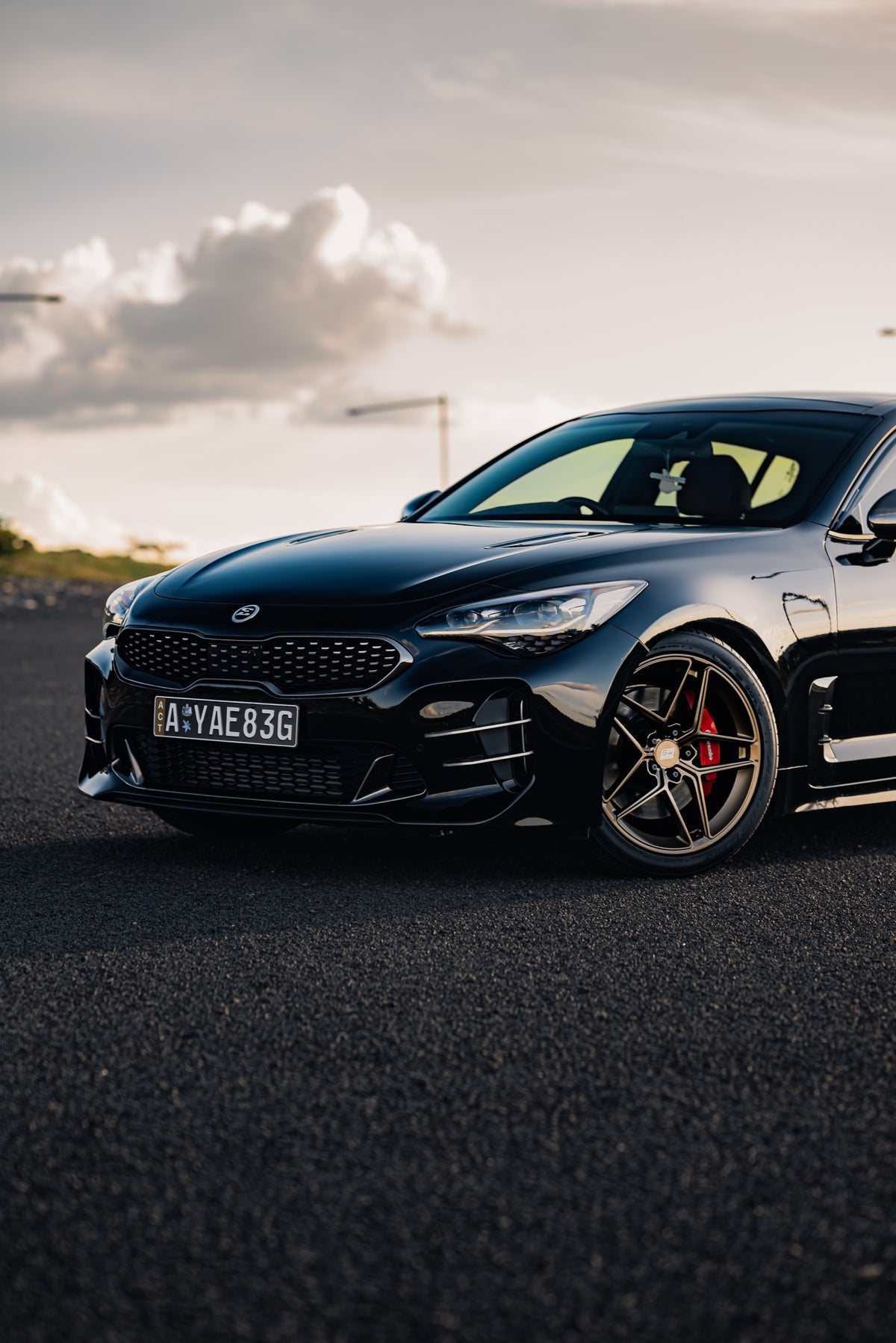

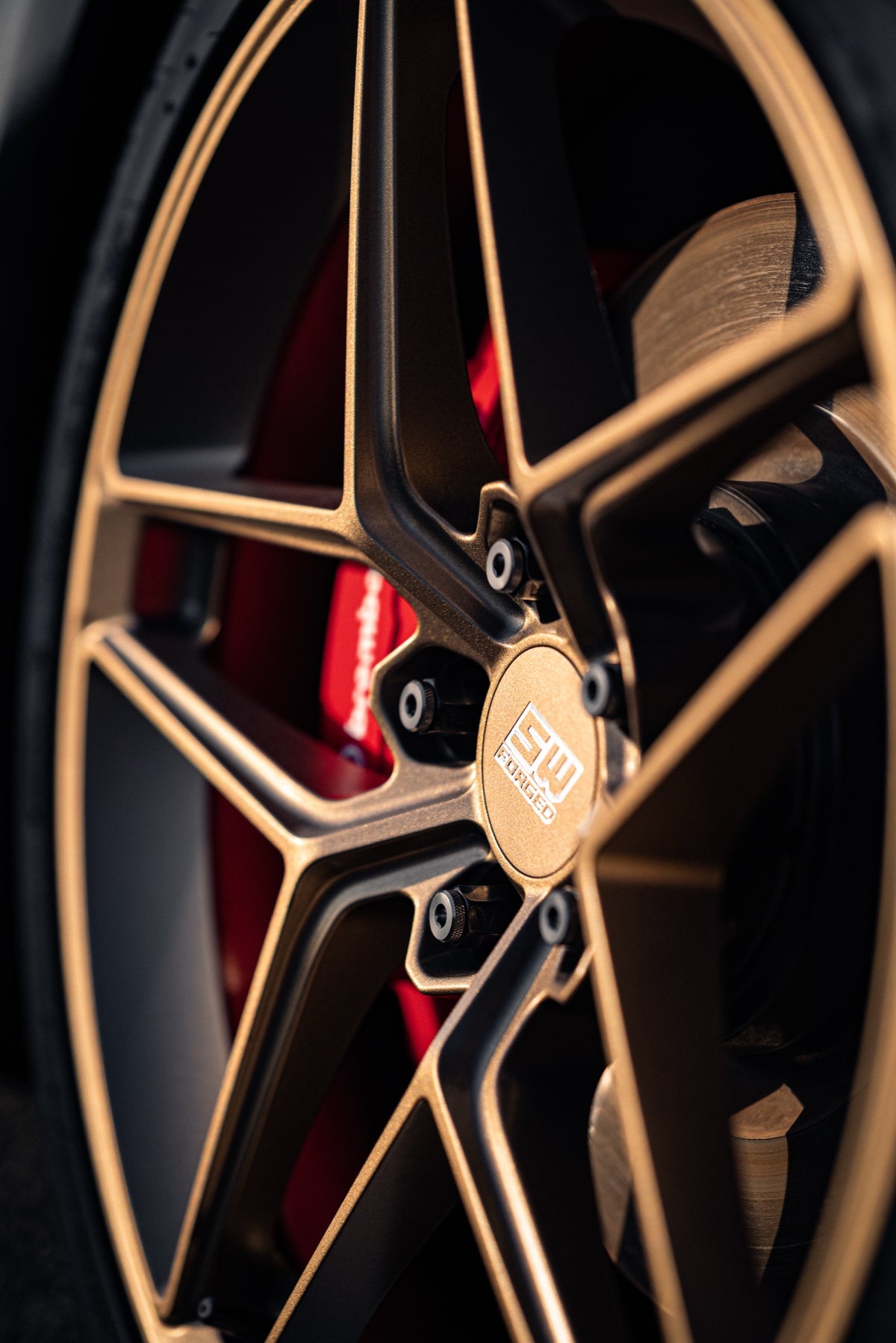

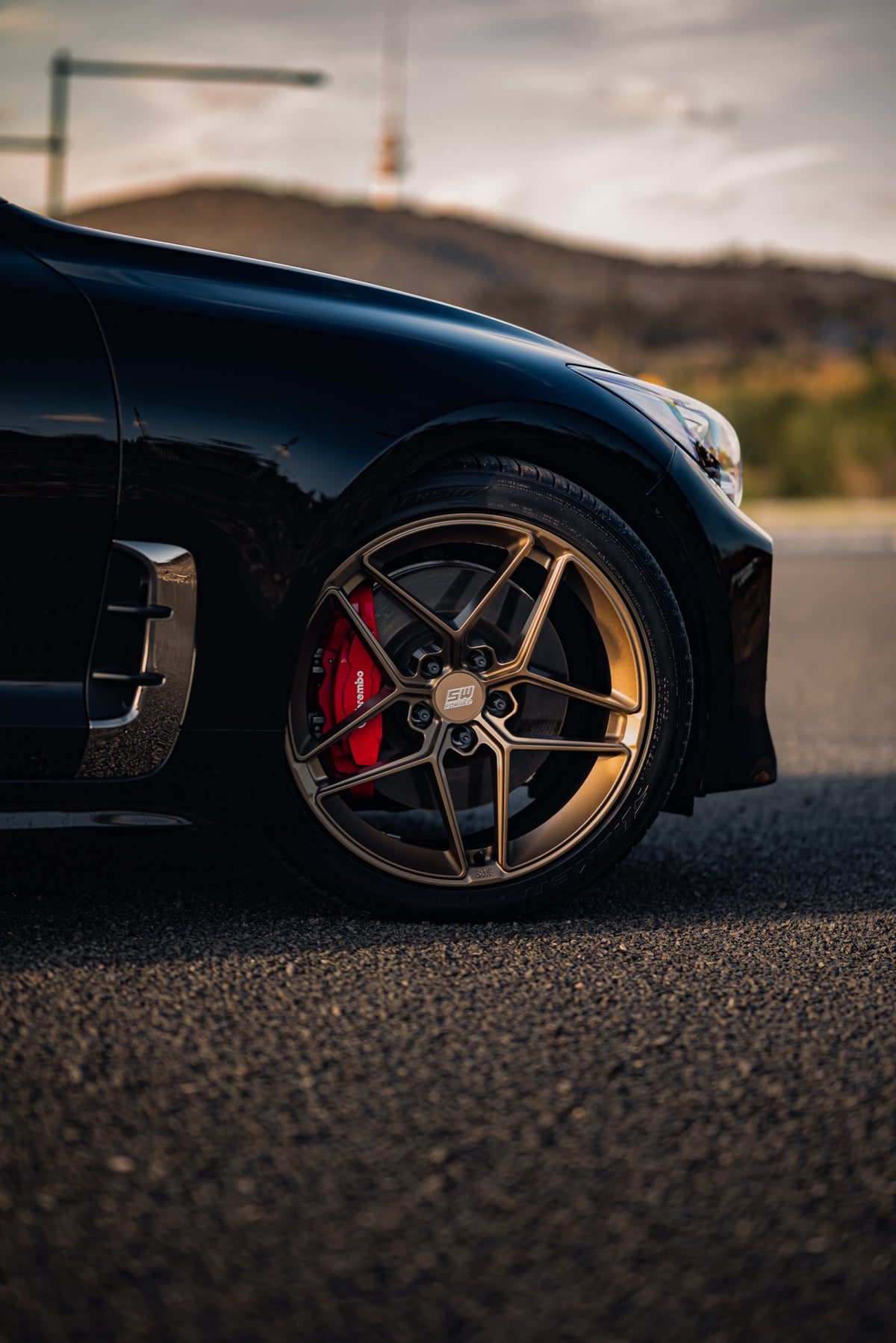

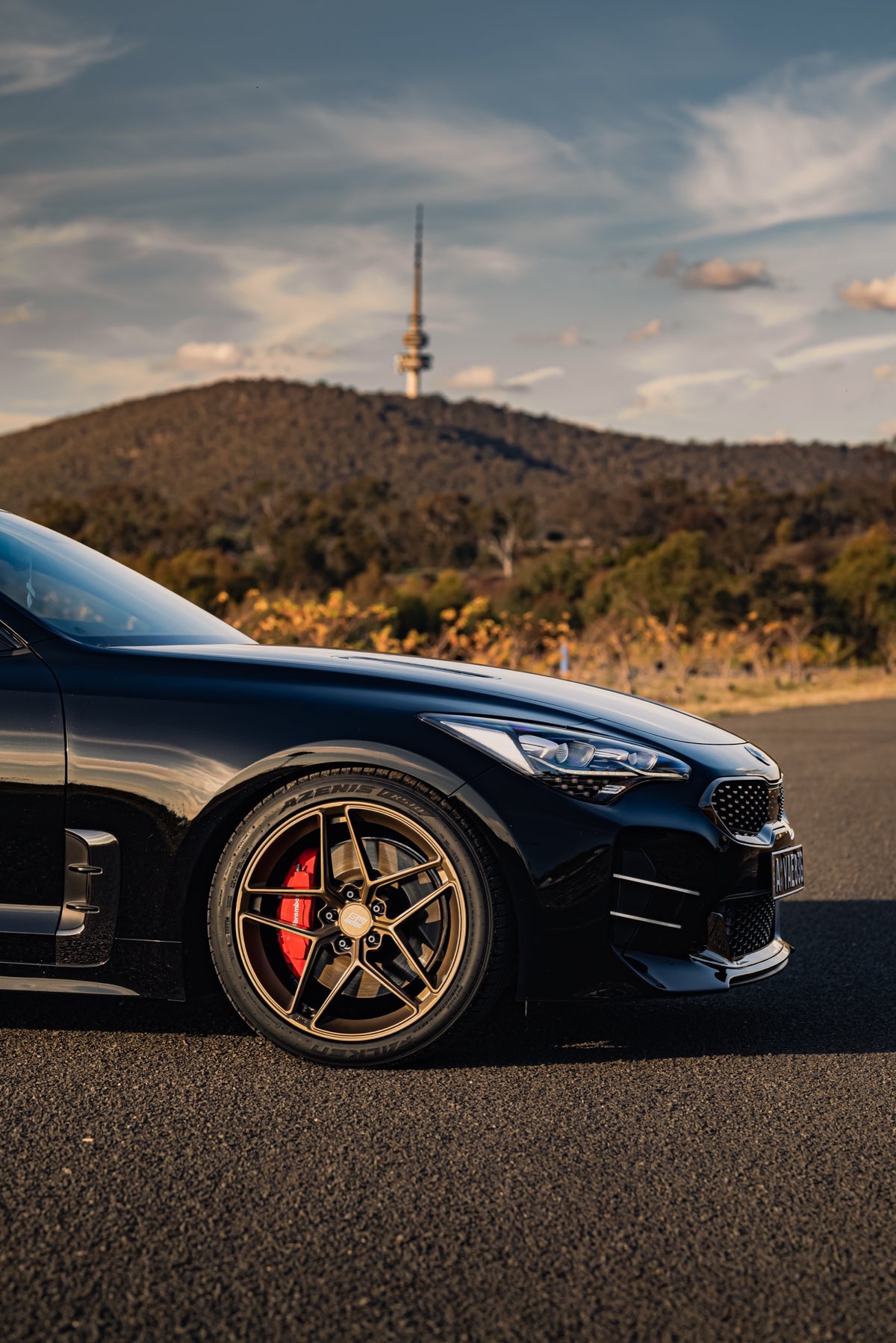

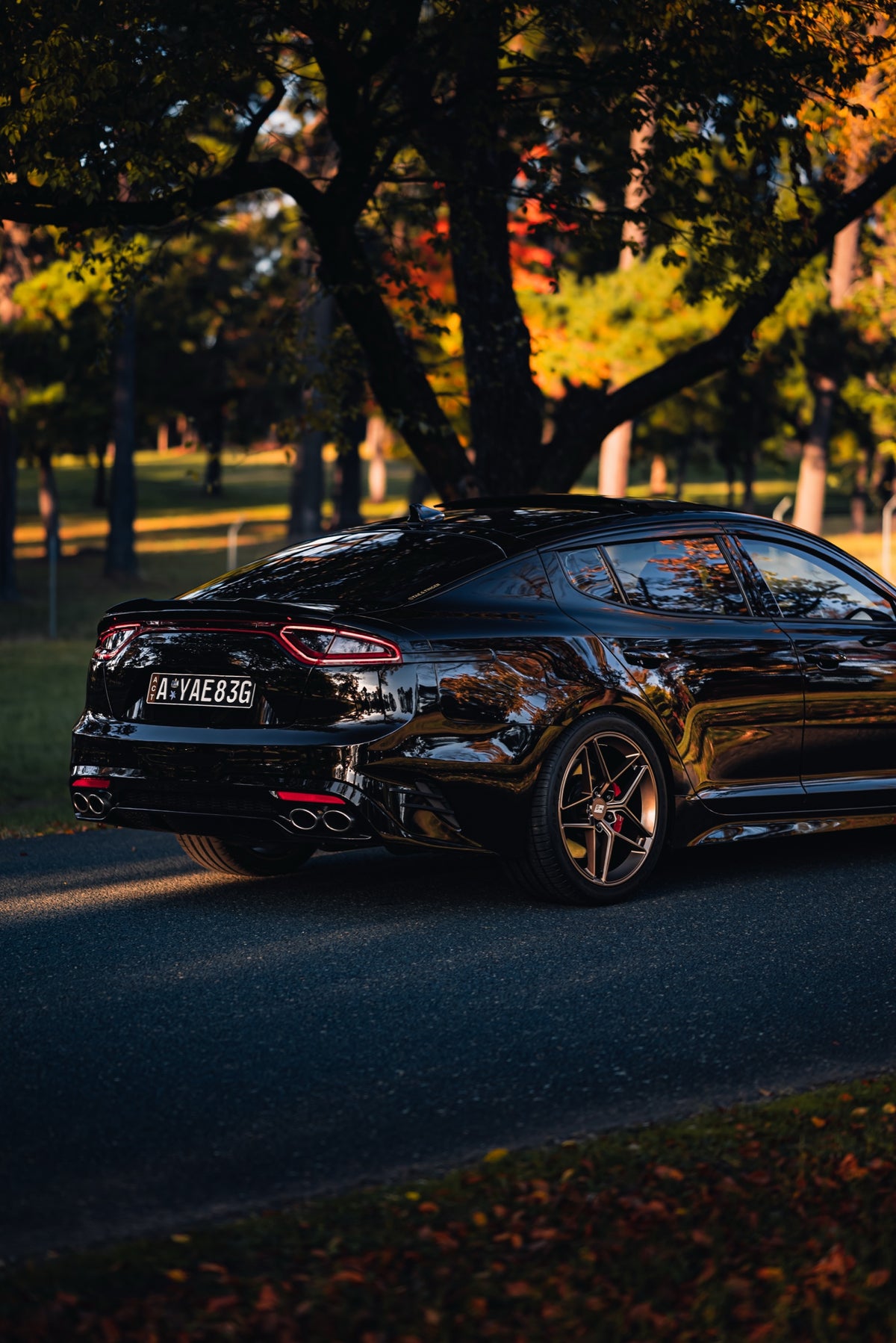

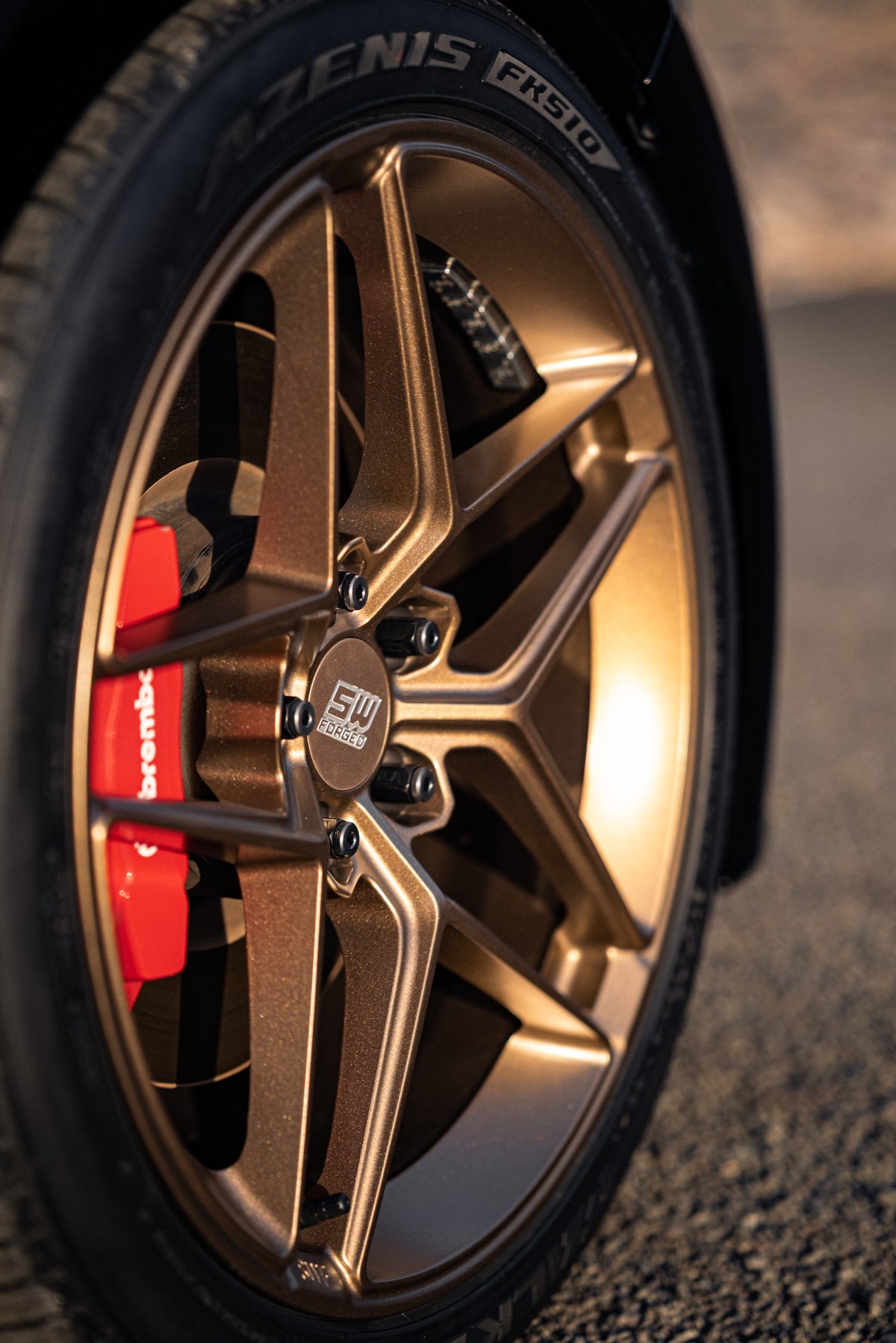

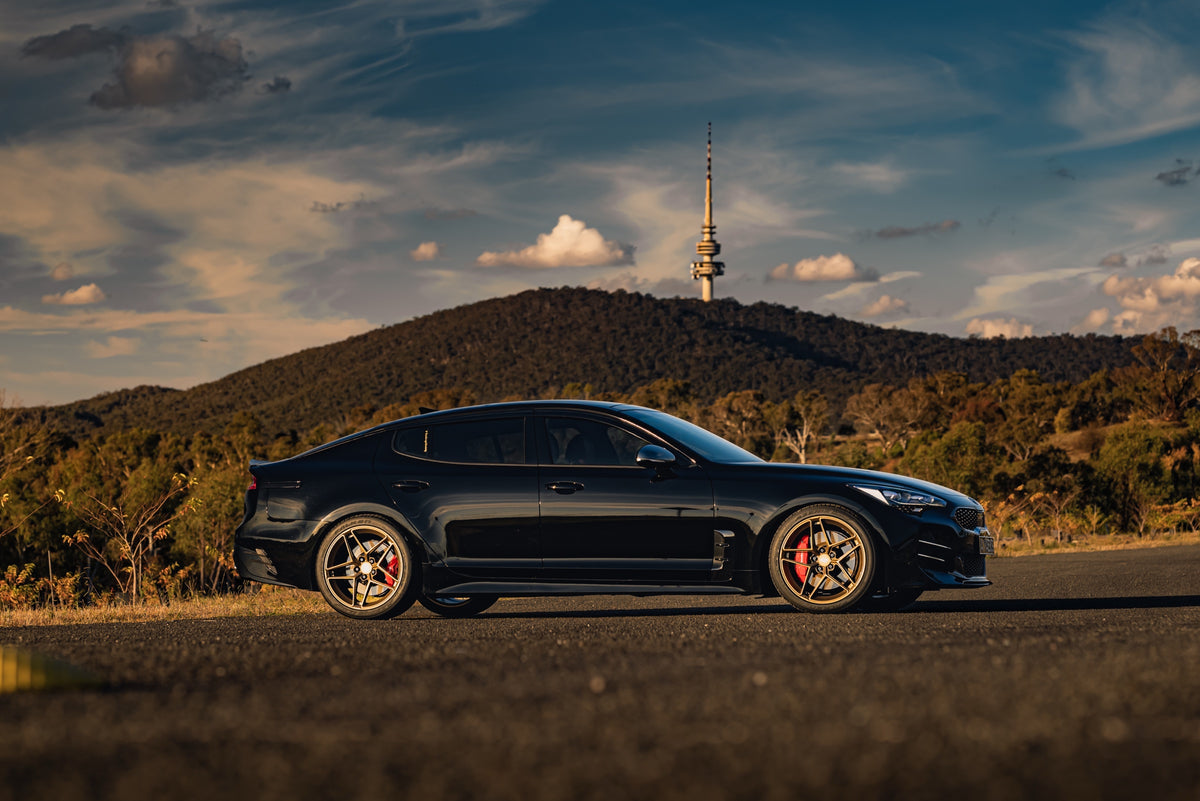

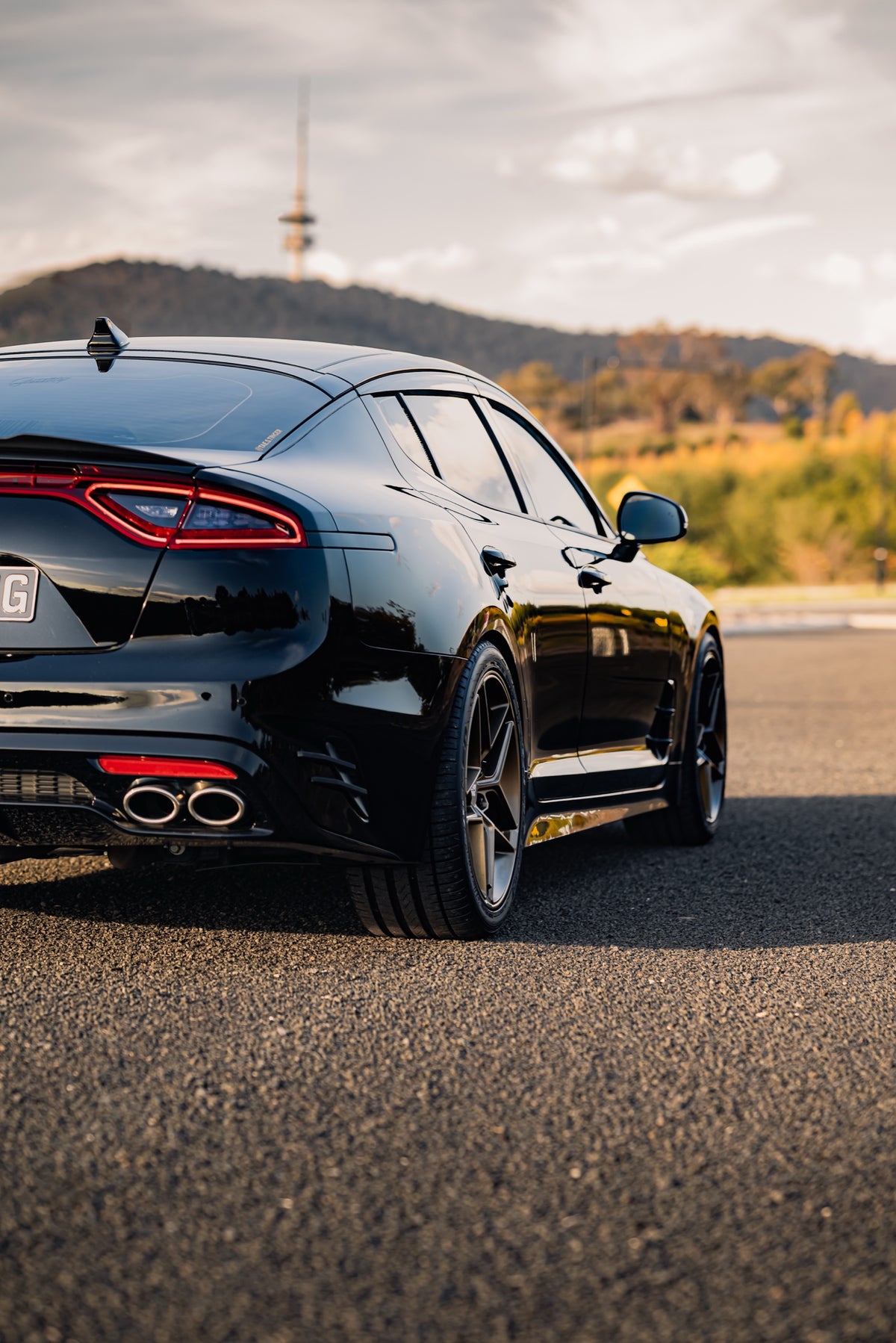

The SWF04 gives the Stinger a sharp, aggressive forged look. Its twin-spoke design runs right out to the rim, framing the Brembo brakes behind it, and the staggered 19-inch fitment fills the arches front and rear for a planted, muscular stance.
Every set is forged, so it's lighter and stronger than a standard cast wheel, and made to order for your car.
As a Forge-Fit set, the fitment is already worked out. The spec below is the one on the Stinger pictured, and the width, offset and finish are all confirmed with you before production, so the wheels suit your exact model, ride height and brake package.
Price is per wheel.
General Information
- Custom manufactured to order
- Approximate lead time: 14–18 weeks
- Fully forged construction
- Staggered 19-inch fitment
- Billet SWF centre caps included
- Width, offset and finish tailored to your car
Available Finishes
- Satin Bronze (as pictured)
- Powder Coat, in other colours
- Brushed
- Chrome
Specifications (as pictured)
| Diameter: | 19 Inch |
| Setup: | Staggered |
| Width (Front): | 8.5 inch |
| Offset (Front): | +30 mm |
| Width (Rear): | 9.5 inch |
| Offset (Rear): | +38 mm |
| Stud Pattern: | 5x114.3 |
| Centre Bore: | 67.1 mm |
| Centre Cap: | Billet SWF cap, included |
| Colour: | Satin Bronze |
Tyres: suits the factory Stinger GT sizes, 225/40R19 front and 255/35R19 rear. Tyres aren't included.
Compatible Models
- Kia Stinger CK 200S, 330S, GT-Line and GT (2017–2023)
Want a different width or offset, or running upgraded brakes? Add it in the build notes box when you order and we'll confirm the final fitment with you before production.
Please Note
Lead times are approximately 14–18 weeks from receipt of the initial payment. This includes rendering and design approval, forging, machining, finishing and quality control.
For customers unable to collect from our Sydney warehouse, please allow an additional 5–7 business days for shipping.
Forged wheels are made to your specification, so once your final design is approved the order can't be changed, cancelled or refunded.
How Forge-Fit works
Pick your car
Each set is spec'd for a specific model, so the width, diameter and offset are already worked out.
Tailor it if you like
Want a different fitment? Add a build note when you order and we'll be in touch to adjust the width, offset or finish.
Forged to order
Every set is forged and made for your car, lighter and stronger than a standard cast wheel.
